Ceramic quad mafolafola faatauaina hausings

Ceramic quad mafolafola faatauaina hausings

Get Latest Price

Totogi totogi:	T/T,Paypal
Incoterm:	FOB
Min. Poloaiga:	50 Piece/Pieces
Felauaiga:	Ocean,Land,Air,Express
Port:	Shanghai

Faʻafesoʻotaʻi nei

Faamatalaga o oloa

Oloa Uiga

Faataʻitaʻiga No.: CQFN24A

Faailoga: Xl

Place Of Origin: China

Afifiina & Faaooina

Faʻatau Iunite

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

Faamatalaga o oloa

CQFN CHRATIC afifi mo masani-masani talosaga

Oloa Valiega

O le Ceramrac Quad mafolafola Leai-Taʻitaʻi (CQFN) afifi o se maualuga-faʻatinoga, luga o le vevela, o le fofo o loʻo fuafuaina mo aso nei eletise. O lenei alualu i luma tulaga o le Cermic IC Budgecces ofoina atu se puʻupuʻu, malamalama, ma faʻatuatuaina le faʻapipiʻiina mo rfus ma maualuga-saoasaoa digitation. E ala i le suia o le faʻasoasoaina e taʻitaʻi atu i le faʻapipiʻi o pads i lalo o le afifi, o le CQFUL, e matua puʻupuʻu lava le eletise eletise, e mafua ai le lelei tele-taimi. E faʻatupuina e le malo o siʻosiʻole galuega sili ona faʻatautaia o Samoa ma tamaoaiga, faia ai le filifiliga lelei mo mea laʻititi.

FAAMATALAGA FAAMASINOGA

Parameter	Specification
Available Pin Counts	12, 16, 20, 24, 32, 40, and custom configurations
Typical Body Sizes	3x3 mm, 4x4 mm, 5x5 mm, 7x7 mm
Typical Pitch	0.5 mm, 0.635 mm
Body Material	Multilayer Alumina ($Al_2O_3$) Ceramic
Frequency Performance	Up to 30 GHz
Sealing Options	Solder sealing (hermetic) or glue sealing (non-hermetic)
Compliance Standard	GJS1420B-2011 (General specification for packages of semiconductor integrated circuits)

Oloa ata

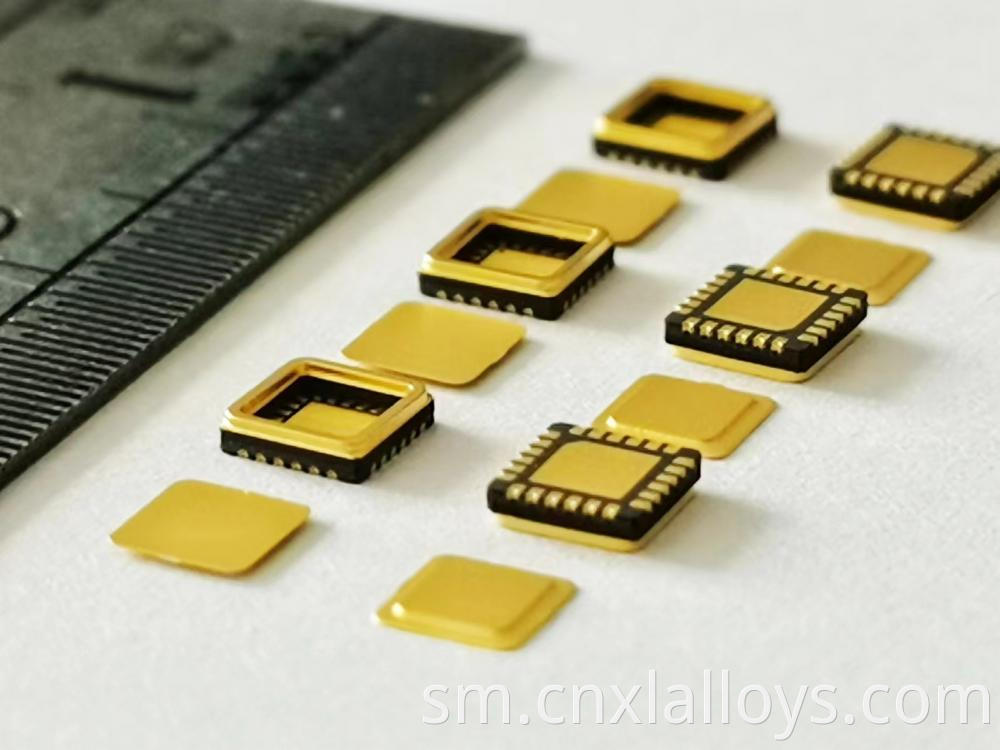

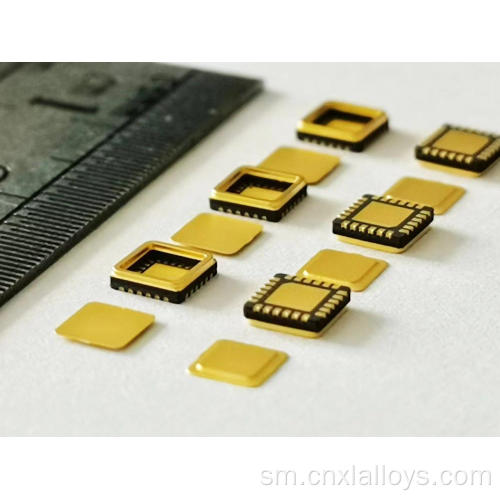

A compact, high-frequency CQFN ceramic package

Mafuaaga ma le lelei

O le tulaga tulaga ese-masani-masani o loʻo fuafuaina: O le faʻamalosiʻau o loʻo ofoina atu i le ultra-maualalo faʻaosofia, faia le CQFNCE lelei mo apalai o le 30 GHZ ma le itiiti mai leiloa le leiloa.
Minititarization: O le tamai vae vae ma lalo ifo o le faʻamatalaga e mafai ai ona maualuga maualuga o le faʻamasinoga.
Sili Atu Faigaluega Pulea: O le tino sima ma se totonugalemu o le vevela vevela
Maualuga le faʻatuatuaina: O faʻataʻitaʻiga na faʻauʻu o le puipuia o le puipuia puipuia mai le susu ma le mama, talafeagai mo le araspace ma le gaoi.
Fuafuaina mo le SMT: E fetaui lava ma le tapulaʻa otometi luga-mugutu o le Mauga o le Fono Faiva.

Talosaga Tulaga

O le tulaga iloga o le CQFN faia o se filifiliga sili mo:

Wireless RF afifiina: MMICICS MO LE 5G, satelite fesoʻotaʻiga, ma-manatu-mafaufau.
Optoepractor afifi: Maualuga-saoasaoa drivers ma tractip-avea ma Amplifiers (Tias) mo Actipce Excevers.
Tofotofoga ma fuataga: Tele-tele-saoasaoa adcs, Dacs, ma isi vaega mo mea faigaluega.
Autotive Sconjoctics afifiina: Oacs mo moli moli moli ma le manavaga.

Faamanuiaga mo tagata faatau

Ausia maualuga masani tele: o le maualalo-parasitic mamanu faʻatagaina au uila e faʻagaioia i tulaga maualuluga ma sili atu faʻatinoga.
Faʻasaʻoina lau oloa tele: faʻaititia le tele ma mamafa o lau oloa mulimuli e ala i le faʻaaogaina o lenei pepa faʻapipiʻi.
Faaleleia le faʻatinoina o le faʻatinoga: Taofi lau maualuga-faʻatinoga tamoʻe tamoʻe malulu ma le faʻatuatuaina.
Faʻafaigofie le maualuga-volume gaosi: faʻaaoga se afifi na mamanuina mo le lelei, lautele lautele.

FAQ (masani fesili fesili)

Q1: O le a le eseesega i le va o le CQFN ma le palasitika Qfn?

A1: O eseesega tele o mea ma le faʻatuatuaina. O le CQFN e faʻaaogaina se tino sima ma e mafai ona faʻamaufaʻailogaina, o le taulaga maualuga o le gaioiga ma le siosiomaga o le siosiomaga mo le maualuga-malamalamaina talosaga. O le palasitika Qfn e le-hermetic ma e masani ona faʻaaogaina i tagata faʻatau ma faʻatau oloa.

Q2: Faʻafefea le CQFN Pa Pa afifi i le PCB?

A2: O le CQFN ua maeʻa ona faʻaaogaina se tulaga o loʻo faʻafou ai le auala tele. O loʻo lolomiina faʻatau atu i luga o le PCB pads, o le vaega o loʻo tuʻuina i luga, ma o le faʻapotopotoga atoa o loʻo pasi atu i le ogaumu uaea ma fausia fesoʻotaʻiga.

Q3: E mafai e le faaputuga o pads e masani ai?

A3: Ioe. E mafai ona matou faʻatulagaina le numera o pad, o le pitch, ma le lapoʻa ma foliga o le totonugalemu o le hood hea e faʻamalieina manaʻoga faʻapitoa.
