Dip24 afifi mo le tuʻufaʻatasia o nofoaga o loʻo lua-laina

Dip24 afifi mo le tuʻufaʻatasia o nofoaga o loʻo lua-laina

Get Latest Price

Totogi totogi:	T/T,Paypal
Incoterm:	FOB
Min. Poloaiga:	50 Piece/Pieces
Felauaiga:	Ocean,Land,Air,Express
Port:	Shanghai

Faʻafesoʻotaʻi nei

Faamatalaga o oloa

Oloa Uiga

Faataʻitaʻiga No.: DIP24

Faailoga: XL

Origin: Saina

Tusi faamaonia: ISO9001

Place Of Origin: China

Afifiina & Faaooina

Faʻatau Iunite

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

Faamatalaga o oloa

CDIP-24: 24-Pin Ceramic Dual In-Line Package mo ICs Lavelave

Va'aiga lautele o oloa

O le 24-Pin Ceramic Dual In-Line Package (CDIP) o se fofo maualuga-faʻalagolago i totonu o le pu mo fale e sili atu ona lavelave fesoʻotaʻiga fesoʻotaʻiga, e pei o microcontrollers, EPROMs, ma meataalo faʻapitoa. Fausia i se tino tele-layer ceramic malosi ma se hermetically sealable design, le CDIP-24 ofo atu le puipuiga sili atu ma le faʻaogaina o le vevela pe a faʻatusatusa i ona paʻu palasitika. O le tulaga fa'apisinisi mo fa'aoga i fale gaosi oloa, va'alele, ma faiga fa'apisinisi umi e le o se filifiliga le faaletonu o masini. O lona fa'aoga-faauo e ala i-pu fa'ata'ita'iga e fa'apena fo'i mo fa'ata'ita'iga ma faiga e ono mana'omia ai le fa'aogaina o le fanua.

Fa'amatalaga Fa'apitoa

O a matou pusa CDIP-24 o loʻo mulimulitaʻi i tulaga faʻamaonia JEDEC mo le tele ma le lelei.

Parameter	Specification
Lead Count	24
Lead Pitch	2.54 mm (0.100 inch)
Row Spacing	15.24 mm (0.600 inch) "Wide" format
Body Material	Multilayer Alumina (Al₂O₃) Ceramic
Lead Frame Material	Kovar (Fe-Ni-Co Alloy)
Sealing Method	Hermetic; Parallel Seam Weld or Au-Sn Solder Seal
Hermeticity	Guaranteed to meet MIL-STD-883 leak rate requirements

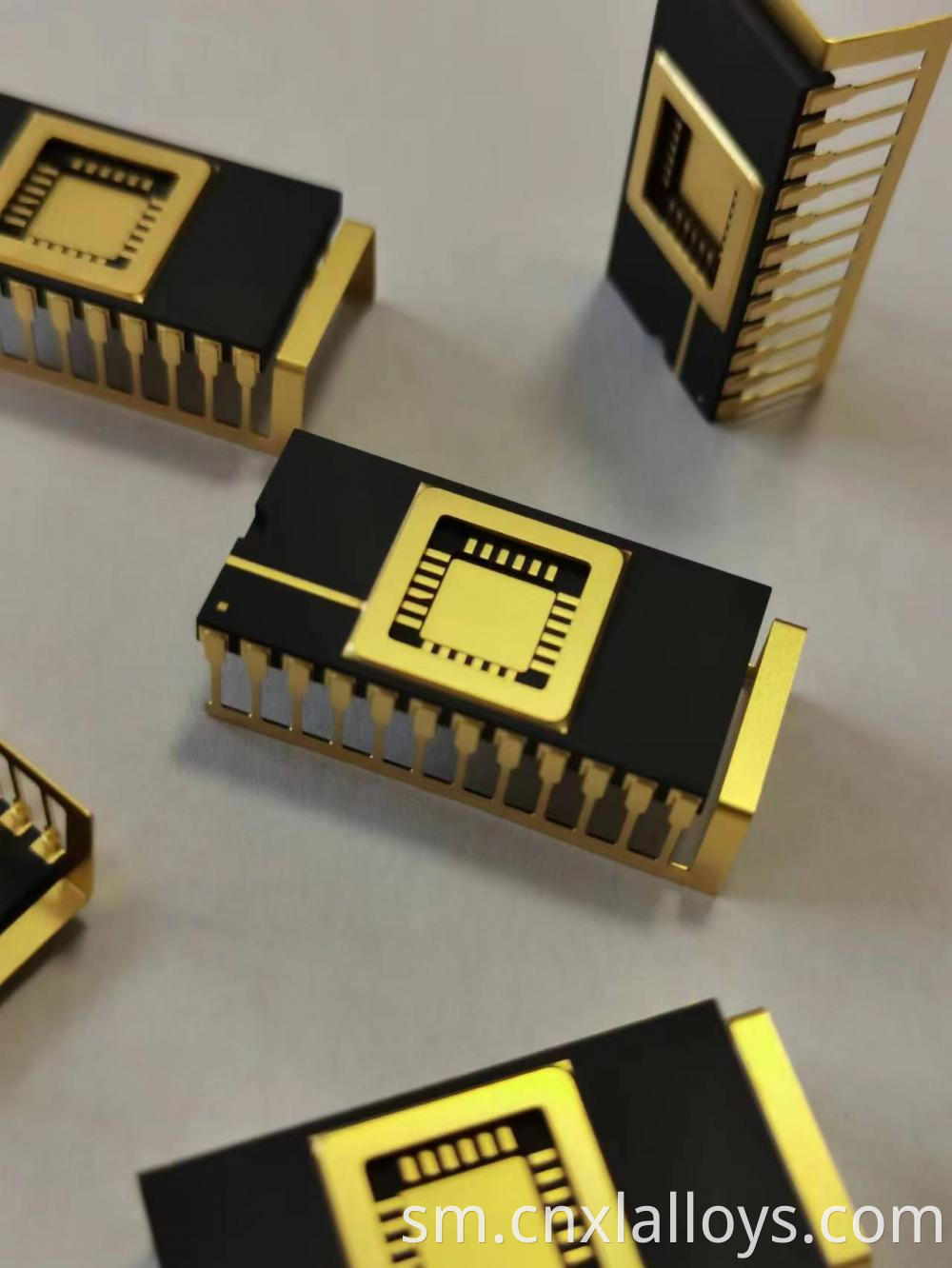

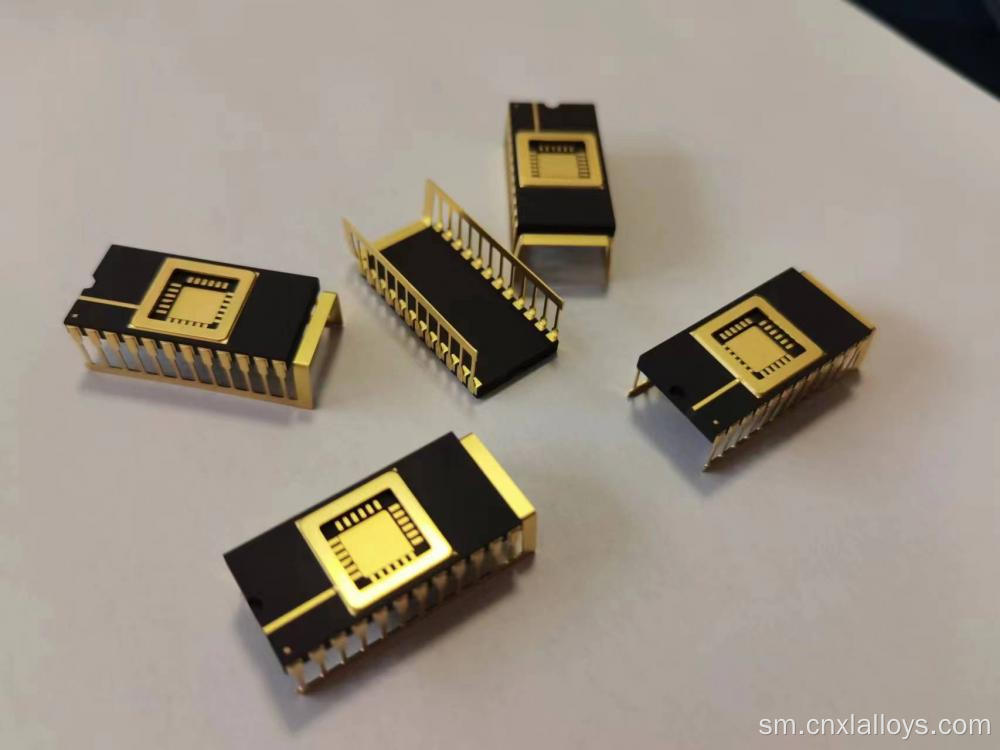

Ata o oloa

A high-reliability 24-pin hermetic CDIP for complex integrated circuits

Mea Fa'apitoa & Fa'amanuiaga

Fa'amaoni Fa'amaoni

O le aoga autu o la tatou CDIP-24 o le faʻamaufaʻailoga moni, lea e vavaeeseina ai le fesoʻotaʻiga tuʻufaʻatasia mai le susu, susu, ma mea faʻafefe i luga o le ea. Ole tulaga auro lea mo Ceramic IC Packaging ma e taua mo le faʻatuatuaina umi.

Lelei Fa'avevela Fa'avevela

O le faufale sima e maua ai se auala maualalo faʻafefeteina e faʻamalo ai le vevela mai le IC, faʻamautinoa le faʻaogaina o le faʻaogaina ma le puipuia o le faʻaleagaina o galuega ona o le vevela.

Au'aunaga ma Fa'ata'ita'iga

O le mamanu e ala i le pu e lelei atoatoa mo socketing, lea e mafai ai ona faigofie le aveeseina ma le suia o le IC mo faʻaleleia, toe faʻaleleia, poʻo le toe faʻatulagaina (i le tulaga o EPROM). O lenei mea e faʻafaigofie ai le atinaʻe ma faʻalauteleina le ola o le oloa mulimuli.

Fausia Tumau

O le tu'ufa'atasiga o se tino sima malō ma ta'ita'i u'amea malosi e fa'atupuina ai se afifi e mafai ona tatalia fa'alavelave fa'ainisinia taua, te'i, ma le vibration, e talafeagai ai mo si'osi'omaga tau alamanuia.

Fa'atinoga Fa'atusa

O le CDIP-24 o le alu-i afifi mo le tele o vaega taua:

Microcontrollers (MCUs): 8-bit ma 16-bit MCUs faʻaaogaina i masini faʻapisinisi ma faiga faʻapipiʻi.
Mea Manaomia: EPROMs, EEPROMs, ma Static RAM (SRAM) e manaʻomia le puipuiga malu.
Logic and Interface ICs: Fa'atonu Fa'atonu Fa'atonu (CPLDs), Field-Programmable Gate Arrays (FPGAs), ma meataalo feso'ota'iga fa'apitoa.
Vaega Fa'aleaganu'u: Fa'ato'a-i sui sui mo gaosiga tuai ma tupe meataalo lagolago i meafaigaluega a le militeri ma fale gaosi oloa.

Fa'amanuiaga mo Tagata fa'atau

Puipui Au Mata'utia ICs: Puipuia au ta'amilosaga feso'ota'i sili ona taua ma lavelave ma le maualuga maualuga o le puipuiga o le si'osi'omaga.
Fuafuaga mo le Long Haul: Fausia oloa e tulaga ese le umi o le ola ma maualalo fua faʻaletonu fanua, faʻaleleia le igoa o lau ituaiga mo le lelei.
Fa'afaigofie le Tausiga: Fuafua faiga fa'apipi'i e faigofie ona tautua ma fa'aleleia, fa'aitiitia ai tau lagolago mo taimi umi.
O se Fa'avae Fa'atuatuaina: O le fa'aaogaina o pusa fa'aeletonika maualuluga o se fa'ailoga manino lea o se oloa fa'ainisinia lelei ma fa'atuatuaina.

Fa'asinomaga ma Fa'amautinoaga Tulaga

E mafai ona matou tu'uina atu fa'aleaganu'u ta'avale i totonu ma feso'ota'iga va'alele i totonu o le tele-layer ceramic body e fa'amalieina ai le fa'atinoga o lau IC patino. So'o se afifi matou te gaosia e fa'atatau i siaki lelei lelei ina ia mautinoa e fetaui ma a matou tulaga maualuga mo le fa'amaoni ma le fa'atinoga.

FAQ (Frequently Asked Questions)

Q1: O le a le eseesega i le va o le 0.300" ma le 0.600" lautele DIP?

A1: E faasino lea i le va i le va o laina e lua o pine. O DIP la'ititi la'ititi (e o'o i le 20 pine) e masani ona fa'aogaina le avanoa "vati" 0.300, a'o DIP lapopo'a o pine fa'apei o le 24-pin lea e fa'aaoga ai le "lautele" 0.600" avanoa e fa'aogaina ai se mate tele i totonu o le afifi.

Q2: E mafai ona faʻatau nei afifi i se faamalama mo UV-erasable EPROMs?

A2: Ioe. O lenei sitaili afifi o loʻo lauiloa faʻatasi ma se faʻamalama quartz faʻapipiʻiina i totonu o le tapuni, lea e mafai ai ona tapeina le EPROM ma le moli ultraviolet mo le toe faʻatulagaina. Fa'amolemole fa'ailoa mai le mana'oga pe a oka.

Q3: O le a le auala sili e faʻapipiʻi ai nei afifi?

A3: Mo le tele o gaosiga, faʻafefe o le galu o le auala sili lea ona masani ma lelei. Mo le faʻataʻitaʻiga poʻo le toe faʻaleleia o galuega, o le faʻapipiʻiina o tusi lesona ma se uʻamea faʻafefete e pulea lelei e talia atoatoa. Ona o lo latou fausiaina malosi, CDIPs e matua faapalepale i faiga faʻapipiʻi tusilima.
